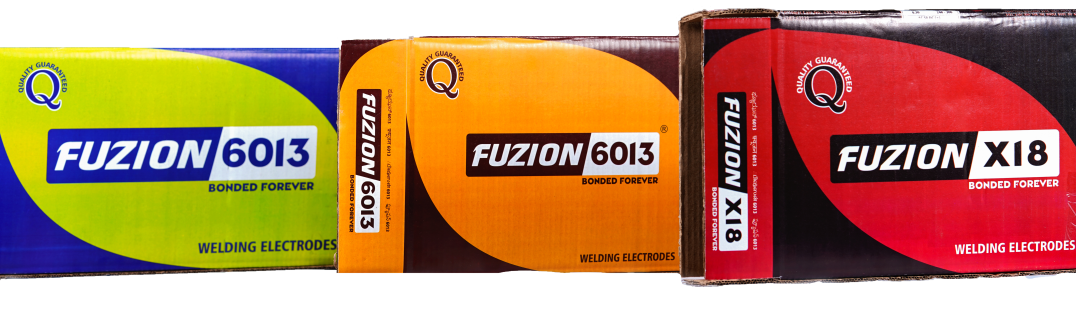

Fuzion and Velarc electrodes are manufactured with controls from raw‑material selection through final finish.
Medium‑coated rutile, all‑position mild steel electrode · AWS A5.1:2004 E6013 · AC or DC (±) · Rod sizes 2.50, 3.15, 4.00 mm.
| Rod size | Welding current |
|---|---|
| 2.0 mm × 250 mm | 50–70 A |
| 2.5 mm × 350 mm | 60–90 A |
| 3.15 mm × 350 mm | 90–140 A |
| 4.0 mm × 450 mm | 100–150 A |
| 5.0 mm × 350 mm | 150–200 A |
| Mechanical property | Typical |
|---|---|
| Tensile strength | 500 N/mm² |
| Yield strength | 445 N/mm² |
| Elongation | 25% |
| CVN impact | 60 J at 0 °C |
| C | Mn | Si | S | P |
|---|---|---|---|---|
| 0.09% | 0.48% | 0.02% | 0.015% | 0.02% |
